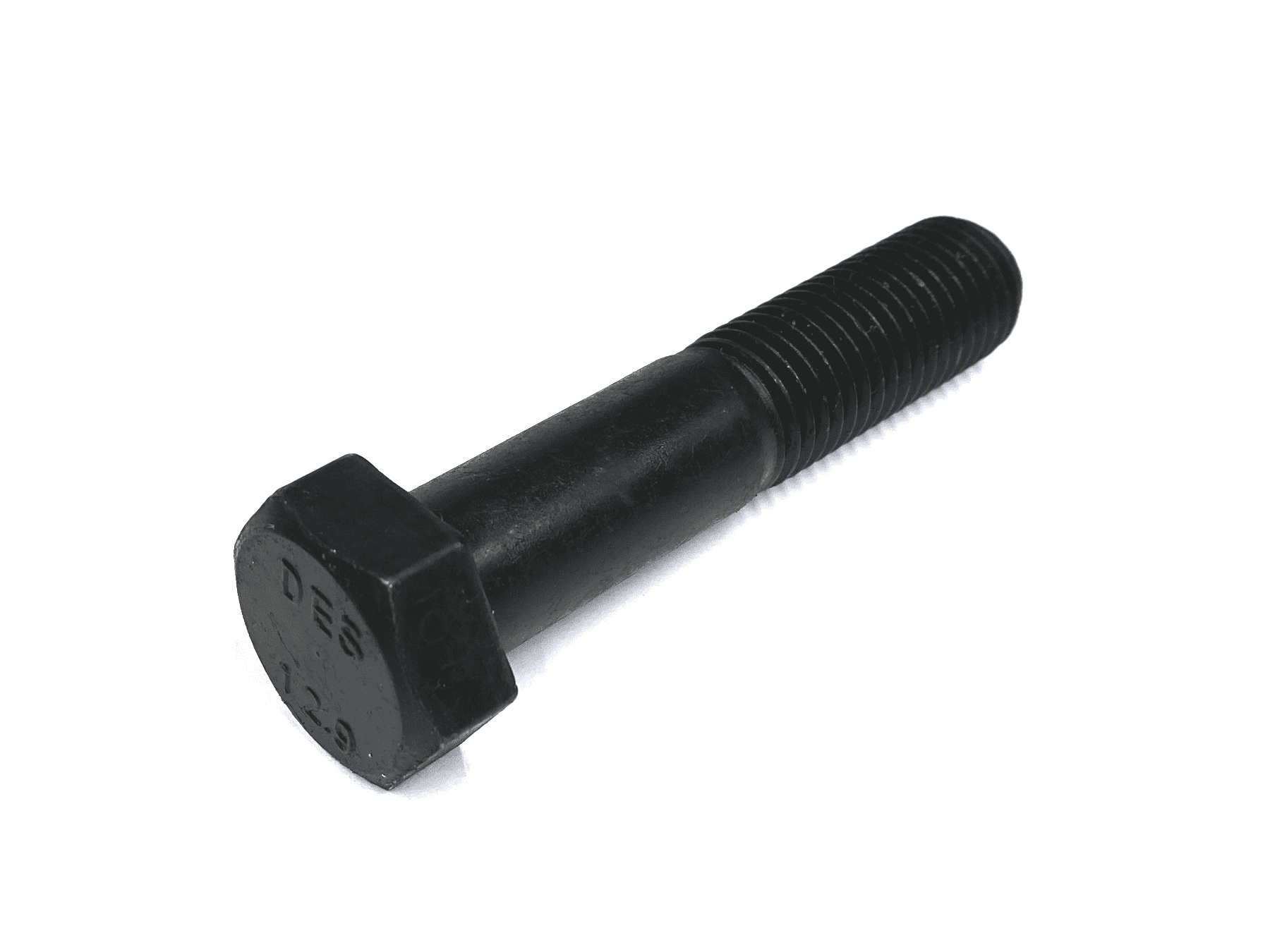

Tool Bolt M20 Shearex Coarse Thread
Part Number: SA11-00058
Lake City: 140 units — Bin: G7E
Ocala: 89 units — Bin: WH3-C5
229 in stock (Dropship Eligible)
$10.57

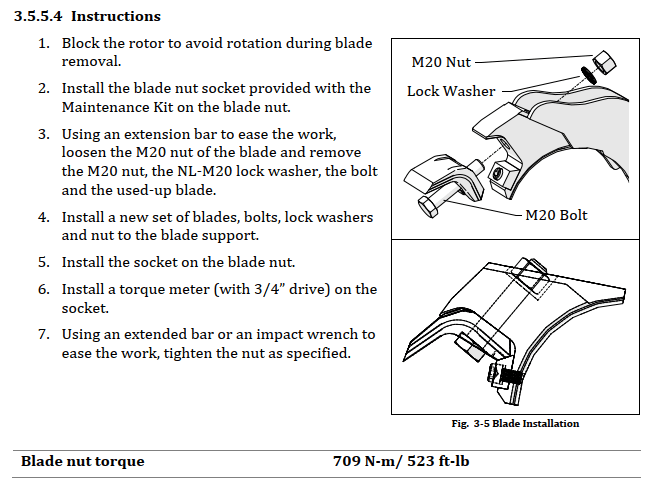

Updated Tool Bolt for Shearex. Torque Spec is 523 ft. lbs.
M20x 95mm Bolt, Grade 10.9 or better. Replaces P# SA11-00010 / SA11-00052
Special Low Profile 30 mm Socket required to fit in holder. See Related parts.
229 in stock (Dropship Eligible)
Quantity per Model: HM-100 (Set of 36), HM-60 (Set of 21), HM-70 (Set of 27), HM-90 (Set of 33), VM-25 (Set of 9), VM-35 (Set of 11), VM-40 (Set of 14), VM-50 (Set of 17)
Weight 1 lbs Manufacturer Aftermarket
Brand (Fitment) Model (Shearex) HM-100SV2, HM-60SR, HM-70DR, HM-70SR, HM-70SV, HM-90SV, VM-25SK, VM-35SK, VM-40SL, VM-50SR, VM-60SR, VM-65SV
Category (Mulchers) Quantity HM-100 (Set of 36), HM-60 (Set of 21), HM-70 (Set of 27), HM-90 (Set of 33), VM-25 (Set of 9), VM-35 (Set of 11), VM-40 (Set of 14), VM-50 (Set of 17)
Updated Tool Bolt for Shearex. Torque Spec is 523 ft. lbs.
M20x 95mm Bolt, Grade 10.9 or better. Replaces P# SA11-00010 / SA11-00052
Special Low Profile 30 mm Socket required to fit in holder. See Related parts.
